One of the most common scenario in VRA 8 is about testing and dealing with failed deployments. when we start provisioning the vms using VRA, there will be situation when we face multiple failures due to Configuration issues or Infra side issues .
In such scenario, Deleting the failed deployment one by one can become tedious task , here is the screenshot of similar situation .
I have submitted 4 builds and 4 went fail due to any reason and I need to come to Portal and perform the cleanup one by one which I do not prefer to do because these numbers can be large based on load and used case.
I have written Python ABX Action which will perform the deletion of the deployment if they are failed automatically .
So how we do set this up …..
Step 1 .
Click on Cloud Assembly => Secret and Create 3 secret by same name
VRAURL == VRA FQDN (Enter your FQND)
username == username (Enter your Username)
password == password (Enter your VRA password

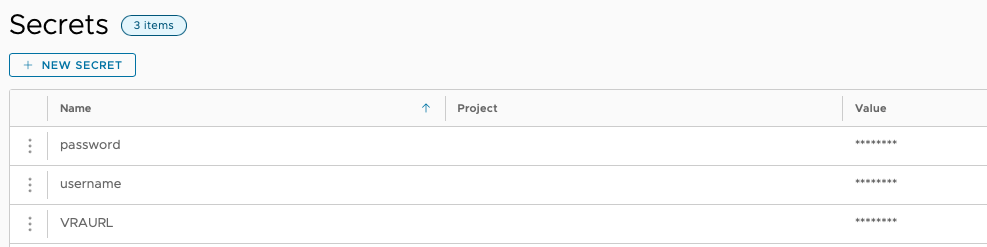

Here is the example of my lab.
Step 2.
Once we have created the secrets , Click on Extensibility=>Action => New Action
Choose the any meaningful name , I have chosen Automatic-Deletion
Choose the language Python and Here is the below code which you can copy paste.
import requests
import time
import json
def handler(context, inputs):
# Taking the value from secret into local Variable
vrafqdn = context.getSecret(inputs['VRAURL'])
username = context.getSecret(inputs['username'])
password = context.getSecret(inputs['password'])
deploymentid = inputs['deploymentId']
# Taking the value from secret into local Variable
# grabbing the latest API API Version
api_version_url = f'https://{vrafqdn}/iaas/api/about'
headers = {
'accept': "application/json",
'content-type': "application/json"
}
output = requests.get(url=api_version_url, headers=headers, verify=False)
# grabbing the latest API API Version
if output.status_code == 200:
latest_api_version = output.json()['latestApiVersion']
apiversion = latest_api_version
# Grabbing the token for authentication
refreshtokenurl = f"https://{vrafqdn}/csp/gateway/am/api/login?access_token"
iaasUrl = f"https://{vrafqdn}/iaas/api/login?apiVersion={apiversion}"
headers = {
'accept': "application/json",
'content-type': "application/json"
}
payload = f'{{"username":"{username}","password":"{password}"}}'
apioutput = requests.post(refreshtokenurl, data=payload, verify=False, headers=headers)
refreshtoken = apioutput.json()['refresh_token']
iaasPayload = f'{{"refreshToken": "{refreshtoken}"}}'
iaasApiOutput = requests.post(iaasUrl, data=iaasPayload, headers=headers, verify=False).json()['token']
bearerToken = "Bearer " + iaasApiOutput
# Grabbing the token for authentication
url = f'https://{vrafqdn}/deployment/api/deployments/{deploymentid}/requests'
dheaders = {
'accept': "application/json",
'content-type': "application/json",
'authorization': bearerToken
}
data = {
"actionId": "Deployment.Delete"
}
apioutput2 = requests.post(url, headers=dheaders, data = json.dumps(data),verify=False)
if apioutput2.status_code == 200:
print('Failed Deployment has been removed')
else:
print(f'Deployment deletion failed with error {apioutput2.status_code}, Here is the reason \n')
print(apioutput2.json())
else:
print(output.status_code)
In the Right hand side add the secrets which we created initially and Under dependency put requests it will look like this.
Step 3 . Setup the Extensibility

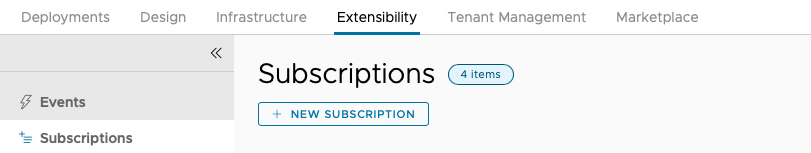

Extensibility = > Subscription = > New Subscription
we will be adding Deployment completed event
Enter the Name and enable Filter in topics , It should look like below.
event.data.status == "FAILED" && event.data.eventType == "CREATE_DEPLOYMENT"
In the action/workflow Choose the Python action which we created in step 2.
And we are done here , Once any failure happens it will delete the deployment automatically
For cloud ,Please find the code
import json
import requests
import time
from requests.packages.urllib3.exceptions import InsecureRequestWarning
requests.packages.urllib3.disable_warnings(InsecureRequestWarning)
def handler(context, inputs):
deploymentid = inputs['deploymentId']
cloudurl = context.getSecret(inputs['VRAURL'])
url = cloudurl
api_version_url = f'{url}/iaas/api/about'
print(f'Deployment ID from EBS fetched: {deploymentid}')
headers = {
'accept': "application/json",
'content-type': "application/json"
}
output = requests.get(url=api_version_url, headers=headers, verify=False)
if output.status_code == 200:
latest_api_version = output.json()['latestApiVersion']
apiversion = latest_api_version
iaasUrl = f"{url}/iaas/api/login?apiVersion={apiversion}"
print(iaasUrl)
refreshtoken = context.getSecret(inputs['token'])
iaasPayload = f'{{"refreshToken": "{refreshtoken}"}}'
iaasApiOutput = requests.post(iaasUrl, data=iaasPayload, headers=headers, verify=False)
if iaasApiOutput.status_code == 200:
print('Authentication to CLoud instance Completed \n')
jsondata = iaasApiOutput.json()['token']
bearerToken = "Bearer " + jsondata
bearertoken = bearerToken
headers = {
'accept': "application/json",
'content-type': "application/json",
'authorization': bearertoken
}
url = f'{url}/deployment/api/deployments/{deploymentid}/requests'
data = {
"actionId": "Deployment.Delete"
}
apioutput2 = requests.post(url, headers=headers, data=json.dumps(data), verify=False)
if apioutput2.status_code == 200:
print('Failed Deployment has been removed')
else:
print(f'Deployment deletion failed with error {apioutput2.status_code}, Here is the reason \n')
print(apioutput2.content)
else:
print(output.status_code)
# Grabbing the token for authentication
VMwareCode
